G-1015 — Orguss

The board inside Orguss, photographed front and back — as sold by Sega and John Sands.

▶ Play Orguss in the browser

Read about Orguss

Sega

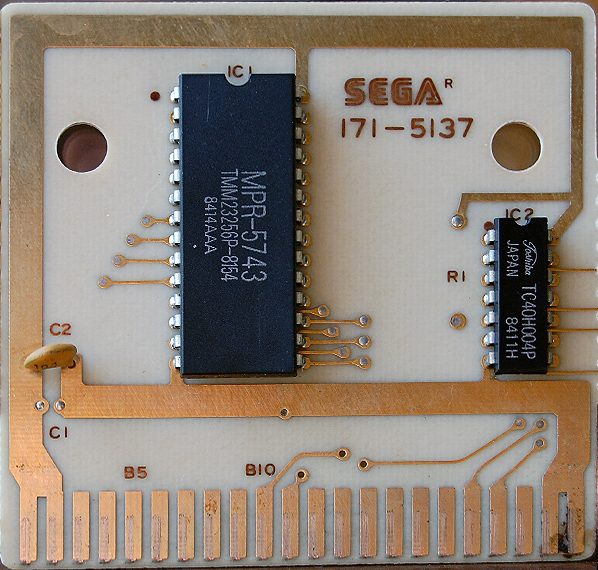

This Cartridge PCB uses one ROM from TOSHIBA named TMM23256P. This chip is a Mask Read Only Memory with a low bit cost most suitable for use in character generator.

Its built in memory matrix has 32,768 x 8bit word, which means 32 Kbytes of data available. It has two separate row and column decoders which are interfaced to the memory cell array.

There are two separate buffers for input and outpout data driven by a controller with a clock signal.

There is an Hex Inverter CMOS chip by TOSHIBA also but, looking at the pcb circuit seems to be powered but not to used.

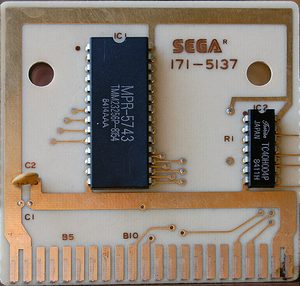

The circuit board inside Orguss, as sold by Sega

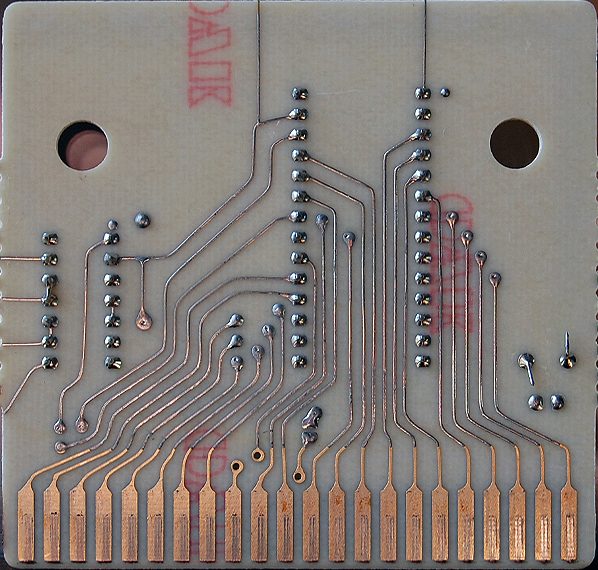

The circuit board inside Orguss, as sold by Sega
The Orguss cartridge, as sold by Sega
Orguss as Sega sold it

Here there are the graphic tiles relative to different game stages/screens stored on ROM:

Graphics stored in the ROM of Orguss
Graphics stored in the ROM of Orguss

John Sands

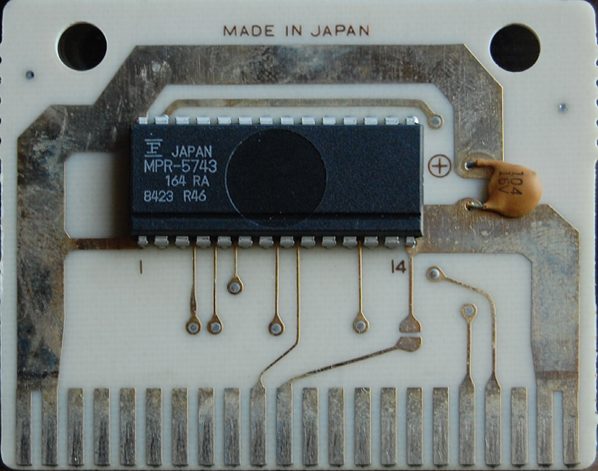

This Cartridge PCB uses one ROM named MPR5743 which seems to be a clone of TOSHIBA TMM23256P, since we have found the same ID name on the CHIP present in ORGUSS Cartridge by SEGA.

If we check all the tracks of both pcb we can realize they are almost the same except for the CMOS Hex Inverter present in the SEGA version.

If some SC-3000 Survivor has some more information can contact us.

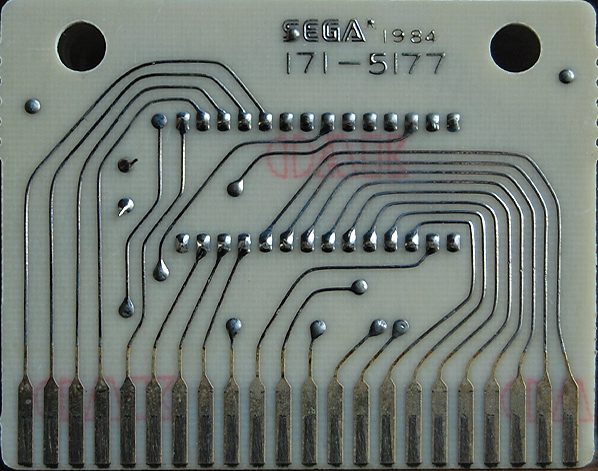

The circuit board inside Orguss, as sold by John Sands
The circuit board inside Orguss, as sold by John Sands

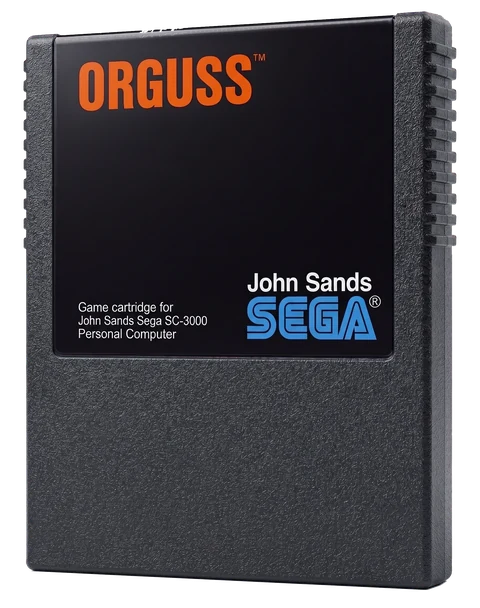

The Orguss cartridge, as sold by John Sands
Orguss as John Sands sold it

Here there are the graphic tiles relative to different game stages/screens stored on ROM:

Graphics stored in the ROM of Orguss
Graphics stored in the ROM of Orguss
